Front I/O Ports
2 x USB 3.2 Gen1 ports
1 x VGA portnes:

Processor / System Bus

1 x Socket SP5 (LGA 6096)
4th Generation AMD EPYC Processors with AMD 3D V-Cache technology
AMD EPYC™ 9004 Series Processors (Air cool with EVAC up to 400W)

Memory

24 x DIMM slots
DDR5 4800/4400/4000/3600 RDIMM/ 3DS RDIMM
1DPC up to 4800
2DPC up to 4000(1R+1R)
2DPC up to 3600(1R+2R)/ (2R+2R)
Maximum 6144GB

* Refer to support page for more information

Expansion Slots

Up to 3 PCIe Gen5 slots + 1 OCP3.0
1 x PCIe x16 slot (Gen5 x16 link, FH, HL)
1 x PCIe x16 slot (Gen5 x16 link, LP, HL)
1 x PCIe x16 slot (Gen5 x8 link, LP, HL)
1 x OCP3.0 socket (Gen5 x16 link)

Storage

Storage Controller :
CPU Integrated
Optional kits Controller :
ASUS PIKE II 3008-8i 8-port SAS 12G HBA card

Drive Bays

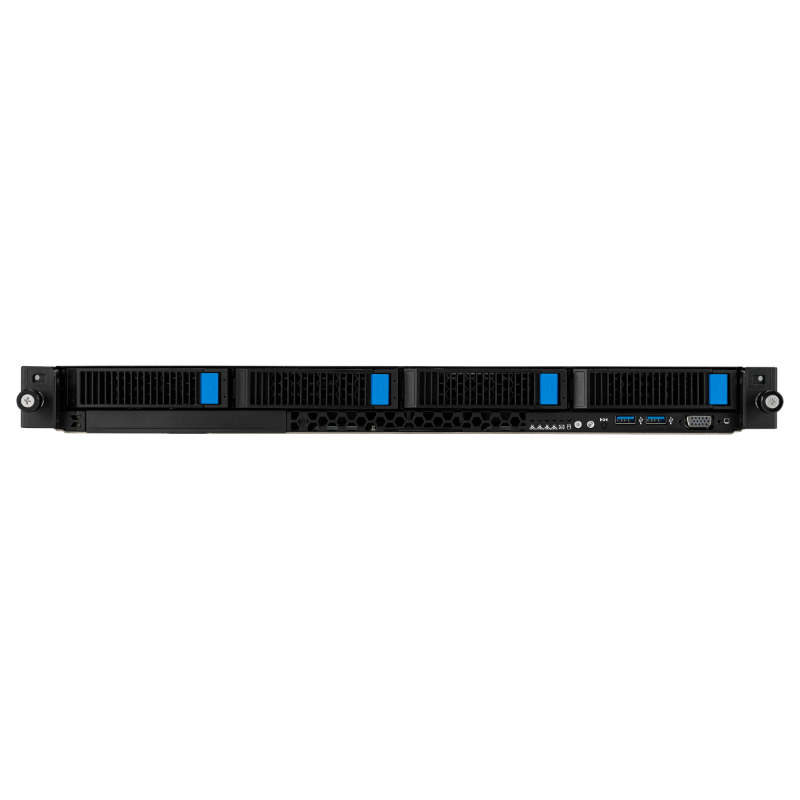

Front bays:
4 x 2.5” Hot-swap Storage Bays
4 x SATA/SAS/NVME

*SAS support only from optional SAS
HBA/RAID card

2 x M.2 connectors

Networking

1 x Dual Port Intel I350-AM2 GbE LAN Controller
1 x Management Port

Graphic

Up to 2 single-slot GPU cards

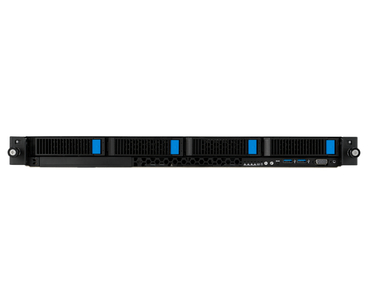

Front I/O Ports

2 x USB 3.2 Gen1 ports
1 x VGA port

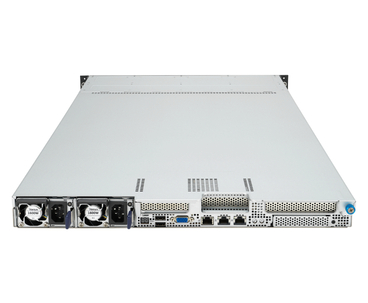

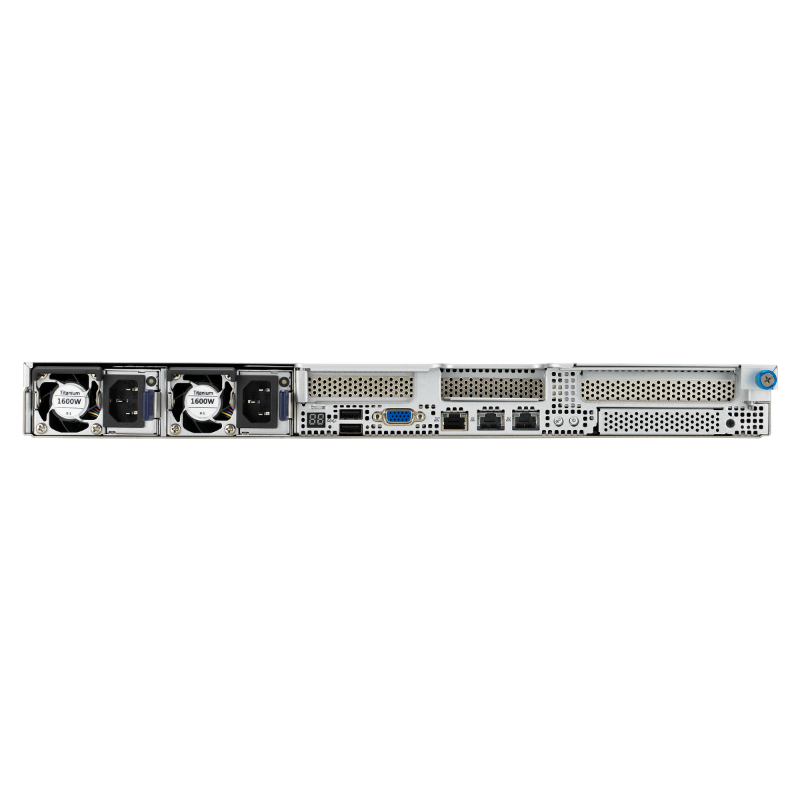

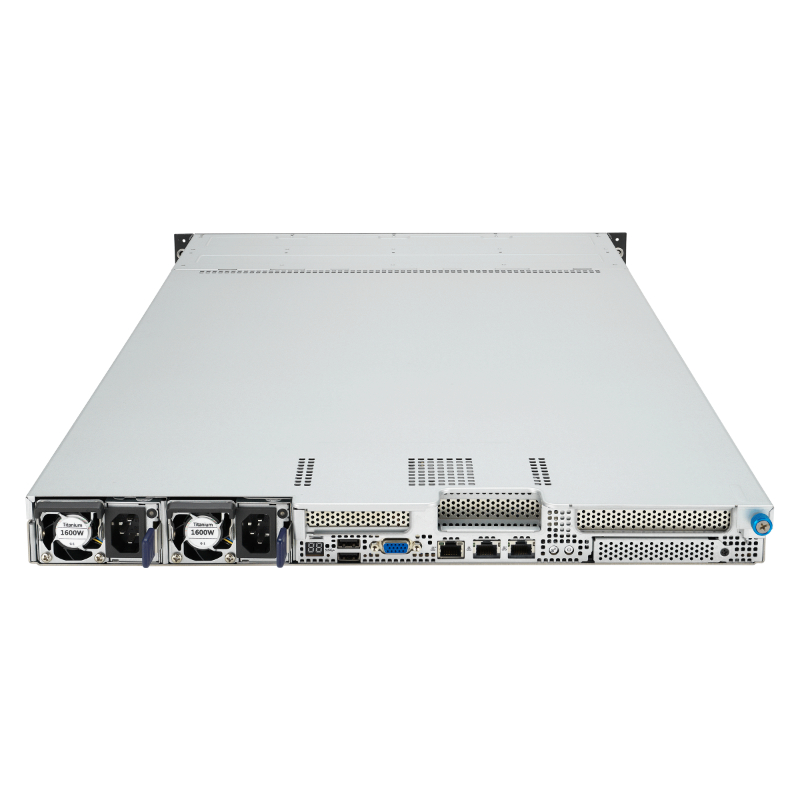

Rear I/O Ports

2 x USB 3.2 Gen1 ports
1 x VGA port
1 x Management port
2 x 1GbE LAN ports

Switch/LED

Front:
1 x Power Button/LED
1 x Location Button/LED
1 x Message LED
1 x HDD LED
4 x LAN LED (1-2 for on-board LAN, 3-4 for OCP LAN)
Rear:
1 x Port80 LED (Q-Code)
1 x Power Button/LED
1 x Location Button/LED
1 x Message LED

Dimensions

842.5mm x 439.5mm x 43.85mm

Form Factor

1U

Weight

22.56kg

Power Supply

1+1 Redundant 1600W/800W* 80 PLUS Titanium
Power Supply

*800W PSU for non GPU SKU+ CPU up to 240W+12 x DIMM.
